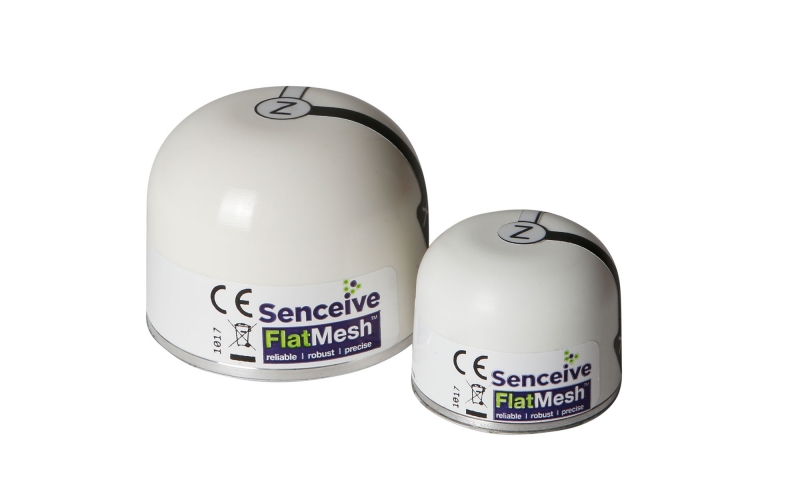

Nano Tri-axial Tilt Sensor Node

Ať už jde o sledování deformací tunelu při jeho opravách, sledování krátkodobého nebo dlouhodobého sklonu kolejového lůžka změn jeho výškových poměrů, sesuvy nebo nasycení půdy vodou, stav mostu, pohyb budov nebo opěrných zdí, zatížení, namáhání nebo náklon, systémy Senceive jsou určeny pro uživatelsky snadné, bezdrátové a naprosto bezporuchové nasazení.

Cena bez DPH

0,00

Cena vč. DPH

0,00

Pro dostupnost a cenu zboží nás kontaktujte - info@geoobchod.cz

Výrobce:
Kód produktu: 658846
Expedice: 5 dní

The Nano range has its own unique miniature form and is explicitly designed for Rail and Construction sectors to provide unbeatable tilt sensing. This easy to deploy tilt sensor node has no external aerial and a durable shell (IP68 rated) that can withstand the harshest environments.The Nano’s discreet form and wide range of simple fixings allow for extremely quick installation to any surface using glue, screw or magnetic mounting. It’s innovative design allows the Nano to be installed in any orientation and is ideal for tunnels, bridges, buildings and on retaining walls.

With reporting possible even down to every 2 seconds, the Nano has a resolution of 0.0001° (0.0018mm/m), and repeatability of ±0.0005° (±0.009mm/m). The Nano’s unrivalled specifications and a battery life of up to 5 years make it the true future of wireless tilt sensing.

The Nano range uses exactly the same core platform as our other products and has many of their Best in Class features and unrivalled functionality, all in a much smaller enclosure.





Key benefits

  • High performance and sophisticated platform in discrete package
  • Tri-axial tilt sensor
  • No external aerial and a durable shell (IP68 rated)
  • 0.0001° (0.0018mm/m) resolution in 3 axes
  • Highly stable and repeatable data (±0.0005° / ±0.009mm/m)
  • Enhanced noise reduction algorithms
  • Explicitly designed for Rail and Construction sectors
  • Up to 100 sensors in one network
  • Industrial levels of data reliability/throughput – 99.9%

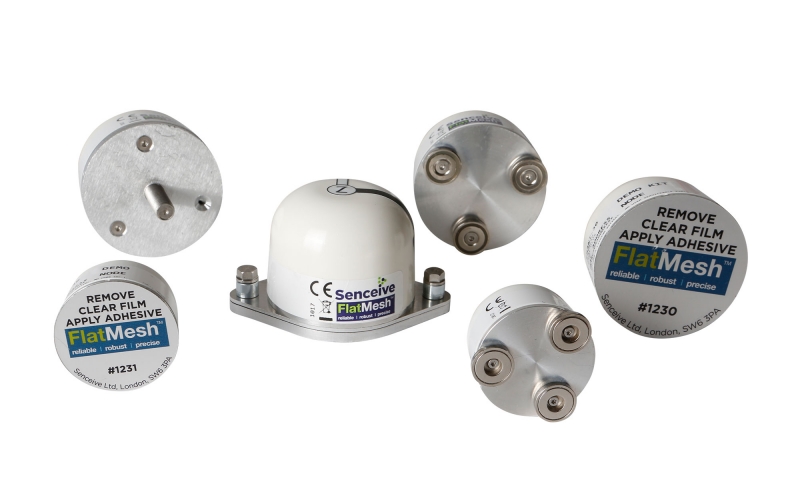

  • Wide range of fixings allow for quick installation to any surface
  • Easy to use graphical interface
  • 1 year battery life for the Nano and 5 years battery life for the Nano+
  • Range of up to 100m
  • Totally wire and mains power free solar powered GSM data backhaul option
  • Robust data backhaul solutions for any under/over ground environment
  • Ability to interface with any user/ client monitoring systems
  • Event triggering/ Intelligent data processing at node level
  • Remotely adjustable sub 1-minute reporting rates
  • Custom alerts and triggers
  • Remote firmware upgrade capability
  • Gateway back-up and auto switchover
