Specifikace přijímače:
| SATELLITE TRACKING | |
| Signals Tracked Hiper GB |
GPS Only L1/L2 C/A, P-Code, Full Cycle |
| Carrier | |
| Channels | 40 channels L1/L2 |
| WAAS/EGNOS | Available |
| Cold Start | < 60 sec |
| Warm Start | < 10 sec |
| Reacquisition | < 1 sec |
| Multi-path mitigation | Advanced muti-path mitigation |
| ACCURACY | |
| Static, Fast Static | |
| L1+L2 | H: 3mm+0.5ppm x D, V: 5mm+0.5ppm x D |
| L1 | H: 3mm+0.8ppm x D, V: 4mm+1.0ppm x D” |
| Kinematic, RTK | |
| L1+L2/L1 | H: 10mm+1ppm x D, V: 15mm+1ppm x D” |
| WAAS/EGNOS | |
| Differential Accuracy | <5m 3DRMS |
| DGPS | |
| Post Processing | 0.3m |
| DGPS/RTCM | < 0.5m |
| Initialize ambiguity | OTF |
| RTK Fix Reliability | 99.9%, 99.5%, 95% Selectable |
| PHYSICAL | |
| Dimensions(mm) | W:159 x H:173 x D:113 |
| Weight | 1.65Kg |
| Enclosure | Aluminum Extrusion |
| Antenna | Internal |
| POWER | |
| Battery Type | Internal battery, Li-ion (4400mA/7.4V), |
| Battery size(mm) | 132 x 35 x 18 |
| Battery weight | 165g |
| Number of batteries | 2 batteries |
| Operating time | 10 hours with TX, 12 Hours with RX mode, 16 hours in static only mode |
| Output power | 12V |
| ENVIRONMENT | IPX6 |
| Operating Temp. | -30C° ~ +60C° |
| Storage Temp. | -40C° ~ +75C° |
| Waterproof | Yes |
| Humidity | 95% |
| CONNECTOR AND I/O | |

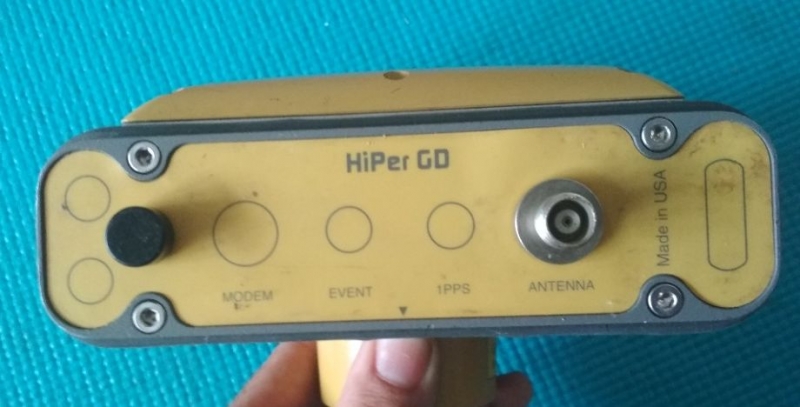

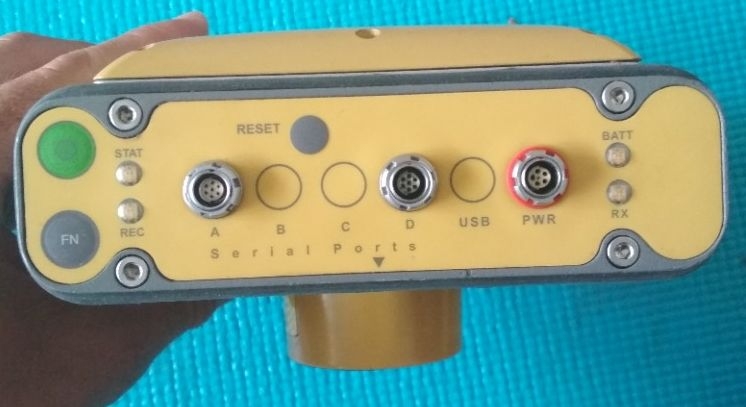

| Connector | 2-Serial Port, 1-USB, 1-Ext.Power, 1-Modem antenna |
| Serial speed | Maximum up to 460800 |
| Blue tooth | Standard (internal) |
| Control panel | MINTER, 4LED x 3 color |
| MEMORY CAPACITY | |
| Standard: | GB – 8MB |
| Maximum: | GB – not upgradeable |
| Type | Onboard |
| Logging Time | 1080 hours (128MB, 15sec, L1/L2 and 6 satellites) |
| RTK COMMUNICATIONS | |
| Modem Type | Internal Digital TX/RX /DSP |
| Output Power | Selectable up to 1W (in 1dB steps) |
| Frequency Range | 410 – 470 MHz programmable |
| Maximum Range | 3.5 to 5 miles with optimal conditions |
| Channel Spacing | 25kHz or 12.5 kHz selectable |
| RTK Update rate | GB: 5Hz |
| Latency | 25msec |
| Format | CMR2,CMR+,RTCM 2.1, 2.3, 3.0, TPS |
Technické údaje
- Přesnost GNSS: 1 cm
- Satelitní systémy: GPS + GLONASS
- GSM modem: 2G modem
- Podpora náklonu GNSS: bez senzoru náklonu
