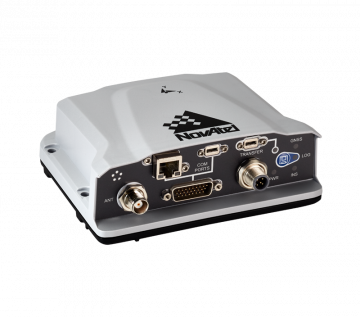

GNSS NOVATEL PwrPak7-E1

The PwrPak7-E1 contains an Epson G320 MEMS IMU to deliver world class NovAtel SPAN technology in an integrated, single box solution.

Cena bez DPH

0,00

Cena vč. DPH

0,00

Běžná cena

431.968,79 (100%)

Pro dostupnost a cenu zboží nás kontaktujte - info@geoobchod.cz

Výrobce: Novatel
Kód produktu: 78566
Expedice: Skladem na některé z poboček

It has a powerful OEM7™ GNSS engine, integrated MEMS IMU, built in Wi-Fi, on board NTRIP client and server support, and 16 GB of internal storage. The PwrPak7-E1 also has enhanced connection options including serial, USB, CAN and Ethernet.

Features

  • SPAN enabled enclosure featuring NovAtel’s tightly coupled GNSS+INS engine
  • 555 channel, all-constellation, multi-frequency positioning solution
  • Multi-channel L-Band supports TerraStar correction services
  • Commercially exportable IMU
  • Multiple communication interfaces for easy integration and installation
  • Built-in Wi-Fi support
  • 16 GB of internal storage
  • Can be paired with an external receiver to support ALIGN® GNSS azimuth aiding for low dynamic applications



Attributes



System Type Enclosed
General Info Length (mm) 147
  Width/Diameter (mm) 145
  Height (mm) 53
  Weight (g) 510
  Typical Power Consumption (w) 1.8
Signal Tracking GPS L1 C/A, L1C, L2C, L2P, L5
  GLONASS L1 C/A, L2C, L2P, L3, L5
  BeiDou B1l, B1C, B2l, B2a, B2b, B3l
  Galileo E1, E5 AltBOC E5a, E5b, E6
  IRNSS L5
  SBAS L1, L5
  QZSS

L1 C/A, L1C, L2C, L5, L6

  NavIC

L5

  L-Band Up to 5 channels
Number of Com Ports USB (Device) 1
  USB (Host) 1
  Ethernet 10/100 Mbps
  CAN Bus 1 Mbps
Performance Accuracy  (RMS)
  Single Point L1 1.5 m
  Single Point L1/L2 1.5 m
  SBAS 60 cm
  DGPS 40 cm
  NovAtel CORRECT™
  TerraStar-L 40 cm
  TerraStar-C 4 cm
  RTK 1 cm + 1 ppm





Technické údaje
