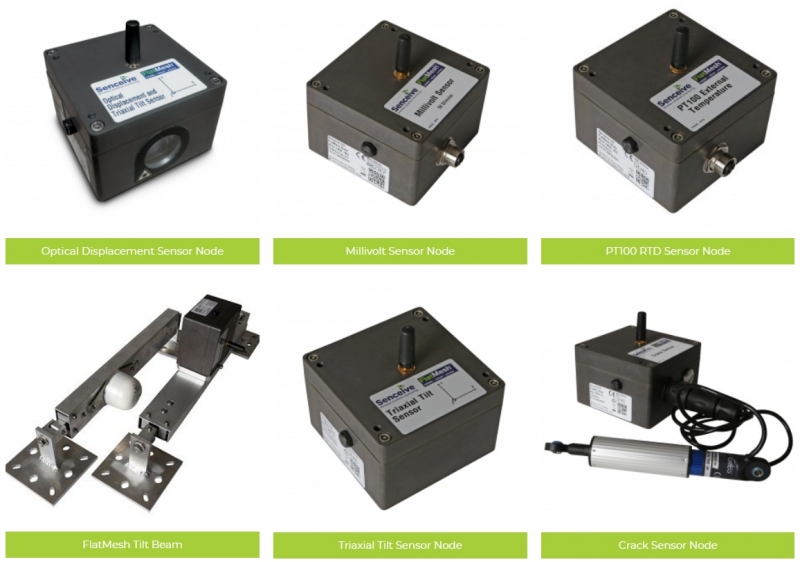

Crack Sensor Node

Kód produktu: 658847
Expedice: 5 dní

Cena bez DPH


Cena vč. DPH


Pro dostupnost a cenu zboží nás kontaktujte - info@geoobchod.cz

Ať už jde o sledování deformací tunelu při jeho opravách, sledování krátkodobého nebo dlouhodobého sklonu kolejového lůžka změn jeho výškových poměrů, sesuvy nebo nasycení půdy vodou, stav mostu, pohyb budov nebo opěrných zdí, zatížení, namáhání nebo náklon, systémy Senceive jsou určeny pro uživatelsky snadné, bezdrátové a naprosto bezporuchové nasazení.

The Crack Sensor Node interfaces to a linear displacement sensor. Its high precision sampling circuit powers the sensor and reports its measurements through Senceive’s wireless communications network to a Gateway. It has been successfully used in many applications, including those measuring:

  • Crack movement
  • Pile separation
  • Structural movement
  • Expansion joint monitoring

Key benefits

  • Waterproof, robust connectors for simple installation
  • Automatic sensor type detection
  • Extremely low noise performance
  • 16-bit resolution (65,536 steps over the full scale)
  • Integrated long life battery
  • 12-15 years’ battery life, including when acting as a relay node within the mesh communications network
  • Integrated temperature sensor
  • One and two channel variants readily available, up to six channels available on request
  • Waterproof to IP66 / IP67 / IP68
  • Firmware is remotely upgradeable over the air via the gateway reducing costly site visits
  • Variety of fixings available for easy installation on site

Physical specifications

* Approximate values only
Dimensions excluding antenna 90 x 90 x 60 mm


90 x 96 x 60 mm (including vent)

Total Mass 0.5 kg*
Housing Material Die cast aluminium
Protection (BS EN 60529: 1992 + A2: 2013) IP66 / IP67


IP68 at 1m for 24 hours

Includes connectors while unmated

Mounting Options Clearance holes for M4 socket head screw in bottom


M4 blind holes in side

Plates and brackets available for magnetic fixing, track bed, stake and pole mounting, and many other applications

Operating Temperature Range -40°C to +85°C

FlatMesh Radio Specifications

* Consult with Senceive for your application
Communication Type Proprietary FlatMesh v3 Mesh Networking Protocols


IEEE 802.15.4 compliant

Frequency Band 2400 – 2485 MHz ISM Band
Maximum Transmit Power (EN 300 328 v1.8.1) 6.5dBm
Maximum Permitted Antenna Gain 2.2dBi
Range Up to 300m depending on the environment and fitted antenna *

GeoWAN Radio Specifications

* Consult with Senceive for your application
Communication Type Star Topology
Frequency Band 863MHz – 928MHz ISM Band
Maximum Transmit Power 20dBm (actual transmit power depends on geography)
Range Up to 15km depending on the environment and antenna*
Maximum Reporting Frequency 30 Seconds
Sample Storage Stores the latest 36 days of samples at a reporting interval of 30 minutes

Crack Sensor Interface

Circuit Topology Voltage divider
Stimulus 2.5V, 100mA max
Resolution 0.0015% of full scale
Noise Level 0.005% of full scale (typical peak to peak)

Internal battery

Battery Type Lithium Thionyl Chloride
Nominal Voltage 3.6V
Nominal Capacity 19000mAh
Typical Battery Life 12-15 years at 20/30 minute reporting intervals, including when acting as a relay node


  • Tested to conformity with all the essential requirements of R&TTE Directive 1999/5/EC and RoHS Directive 2011/65/EU
  • Network Rail Acceptance PA05/04146
  • London Underground Approved Product ID 2073

Ordering Information and Accessories

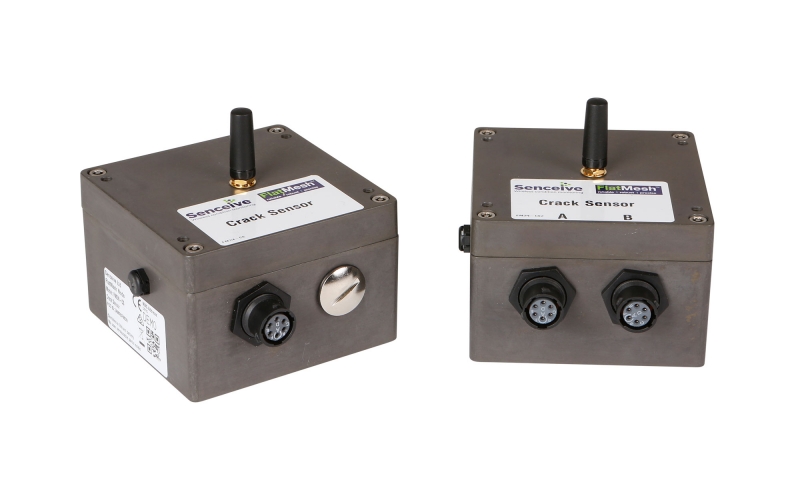

FlatMesh 3 Crack Sensor Node (one port)
GeoWAN Crack Sensor Node (one port)
FlatMesh 3 Crack Sensor Node (two port)
GeoWAN Crack Sensor Node (two port)

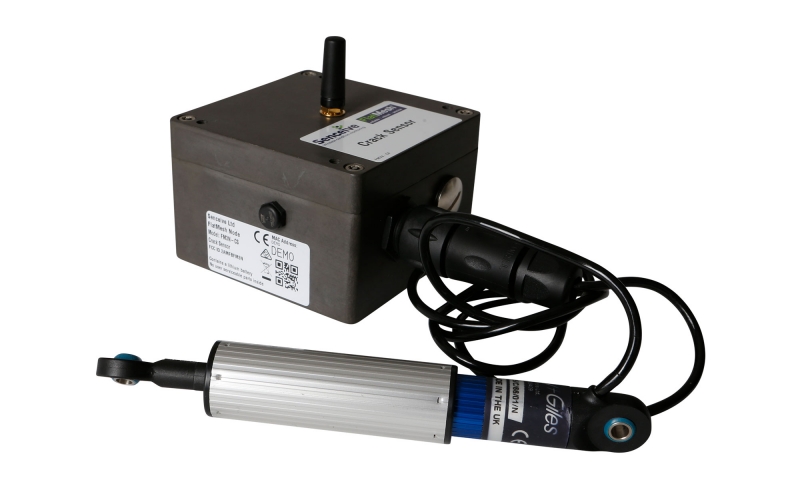

Potentiometer 25mm crack sensor
IP66 rated, with connector fitted
Use with FF-CS1

FS-CS125 Potentiometer 125mm crack sensor IP66 rated, with connector fitted Use with FF-CS1
FF-CS1 Crack Sensor mounting kit
FF-MP-S360 Swivel mounting kit with 360-degree adjustment range Mounting bracket for node
FF-MP-V Vertical mounting plate
– use U-bolts to fix to poles or stakes
– use glue to fix to walls where drilling is not permitted
Use with FF-MP-S360
FA-FM-WPS Waterproof straight antenna Overall node height 168mm (approx) when fitted Maximum gain +1.1dBi
FA-FM-LPS Waterproof low profile straight antenna
Minimum overall node height, perfect for track bed and tight spots
Overall node height 92mm (approx) when fitted
Maximum gain 0dBi
FA-FM-ADJ Adjustable angle antenna Flexible installation, perfect for use in tunnels and indoor environments Overall node height 202mm (approx) when fitted and upright Overall node height 102mm (approx) when fitted and at 90-degree angle Maximum gain +2dBi
FC-NC Antenna cover kit
Use with FA-FM-LPS antenna
Overall node height 96mm (approx) when fitted
