SP90m

GNSS sensor SP90m

GNSS Spectra Precision SP90m je nejnovější přístroj s plným příjmem všech satelitních systémů.

Cena bez DPH

299.900,00

Cena vč. DPH

362.879,00

+ -
Výrobce: Spectra Precision
Kód produktu: 548794
Expedice: 1 den

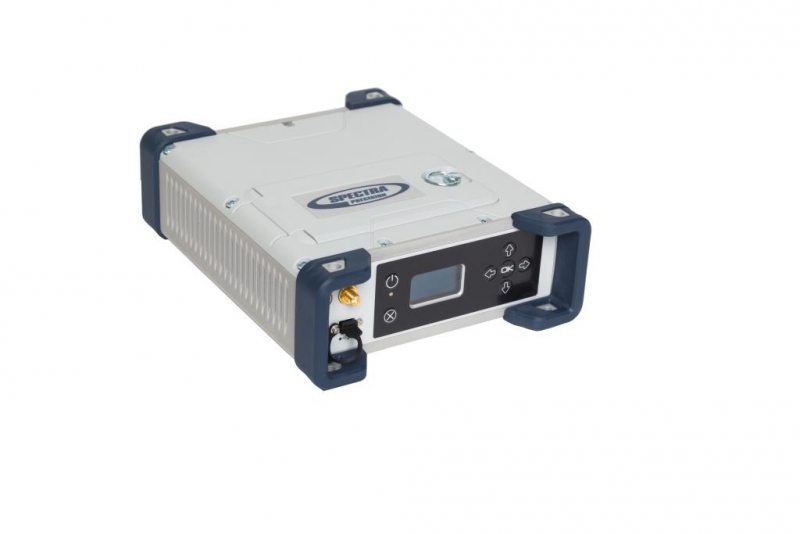

The Spectra Precision SP90m is a powerful, highly versatile, ultra-rugged, and reliable GNSS positioning solution for a wide variety of applications in real-time and post-processing. It also comes with a variety of integrated communications options, such as Bluetooth, WiFi, UHF radio, cellular modem, and two MSS L-band channels to receive Trimble RTX correction services.



The modular form factor of the SP90m allows for a maximum in flexibility on how the receiver can be used, such as base station, continuously operating reference station (CORS), RTK or Trimble RTX rover, on-board machine integration, vessels, etc. The ultra-rugged design of the aluminum receiver housing protects the investment, especially in tough field environments.



The state-of-the-art and patented Z-Blade GNSS-centric technology uses all available GNSS signals to deliver fast and reliable positions in real-time. Besides supporting all currently available and future planned GNSS satellite signals, the SP90m GNSS receiver allows the connection of two GNSS antennas for precise heading determination without the need for a secondary GNSS receiver.



  • Most versatile, modular receiver design
  • Ultra-rugged design
  • Patented Z-Blade technology
  • 480-channel ASIC
  • Dual GNSS antenna inputs
  • Event marker input
  • PPS output
  • OLED display, keyboard, and Web UI
  • Internal TRx UHF radio
  • 3.5G cellular modem
  • Built-in Bluetooth and WiFi communication
  • SMS and e-mail alerts
  • Anti-theft technology
  • Backup RTK
  • RTK bridge
  • 2 MSS L-band channels
  • Trimble RTX correction services
Technické údaje
  • Přesnost GNSS: 1 cm
  • Satelitní systémy: GPS + GLONASS + GALILEO + BEIDOU
  • Počet GNSS kanálů: 336 kanálů
  • GSM modem: 2G + 3G + 4G modem
  • Podpora náklonu GNSS: bez senzoru náklonu
